Logic Boss

Two-stage, logic & pattern generation

Model Number: ADE-31
Release Date: July 2013

Multi-stage, switchable logic and pattern-generation module
combining practical utility and performance-oriented features.

Up to 4 inputs and 12 simultaneous outputs in a unique cascading
architecture with CV switching and linking between the 2 stages.

Perform basic logic utility tasks, create complex patterns and
create rhythmic variations via on-board or external CV control.

LED status on all inputs and outputs for clear status indication.

Power-supply protection. Shallow, skiff-friendly build.


exc. VAT
Plus applicable shipping & tax

Locate a dealer

    Clocks, Logic & CV / Logic Boss
    Logic Boss
    Logic Boss
    Logic Boss
    Logic Boss
    Logic Boss
    Logic Boss
    Logic Boss

    1) Buy a suitable USB to FTDI (TTL-232R-5V) cable directly or from a 3rd party supplier:

    USB to FTDI (TTL-232R-5V) cable


    Also available from:

    Adafruit (US) Digikey (UK) Farnell (UK) Sparkfun (US)

    2) Follow the instructions in the manual for downloading and upgrading:

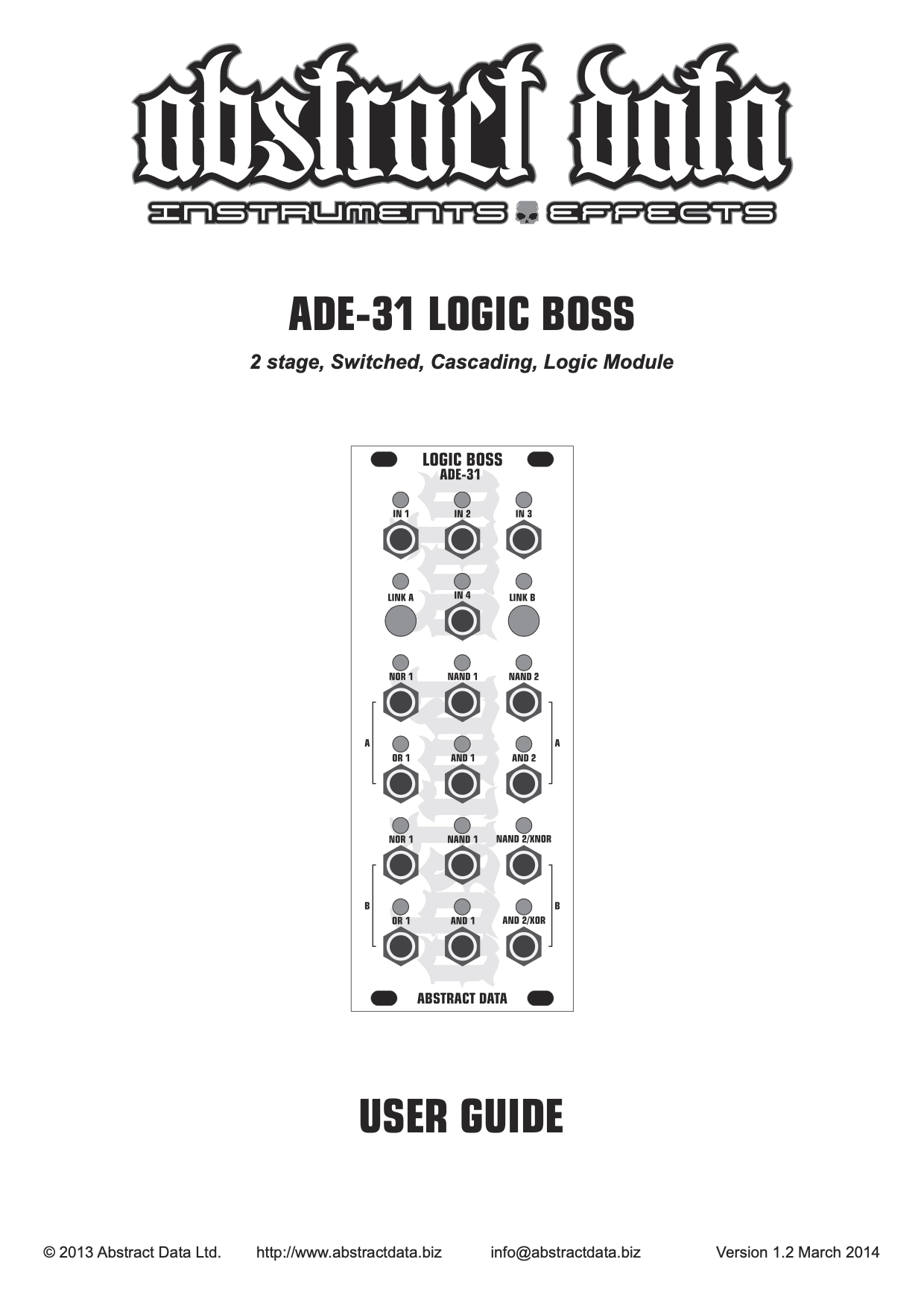

    ADE-31 Manual:(PDF)
